PMB 40 or Polymer Modified Bitumen 40 is is a specially manufactured bitumen with polymers to deliver superior performance. this grade used in modern road construction, heavy-traffic highways, and asphalt applications that require superior elasticity and rutting resistance. we supply high-quality PMB 40 to withstand extreme temperature variations, long traffic loads, and harsh environmental conditions. Thanks to its enhanced mechanical properties, PMB 40 is ideal for applications that experience heavy traffic loads, dynamic stresses, and extreme temperature variations. It is widely used in the construction of highways, bridges, airport runways, urban road networks, and heavy-duty pavements, particularly in hot climates or regions with high structural stress. PMB 40 provides improved pavement stability, extended service life, and enhanced resistance to fatigue and thermal cracking, making it a reliable choice for high-performance asphalt mixtures and critical infrastructure projects.
Application of Polymeric Modified bitumen PMB 40
Polymer Modified Bitumen (PMB) is used across a range of challenging situations requiring high performance products or custom formulated to overcome specific challenges; PMB 40 is a modified bitumen grade produced by blending paving grade bitumen with polymers to enhance:
Highways and Expressways: Widely used for high-traffic highways and expressways that face heavy and continuous traffic loads. The high-temperature performance helps resist rutting and deformation in such conditions.
Industrial Zones and Heavy-Duty Roads: Suitable for industrial areas and roads where heavy-duty vehicles frequently operate, as PMB 82-10 can handle the stress from heavy, slow-moving vehicles.
Airport Runways and Taxiways: Ideal for airport pavements where exposure to high temperatures and heavy aircraft loads require resistance to deformation and cracking.
Bridges and Elevated Structures: Used on bridges and overpasses to handle thermal stresses and prevent cracking, which are common due to temperature fluctuations and high traffic loads.
Urban Roads and High-Temperature Regions: Effective in urban environments and regions with extremely hot summers, where roads face both heavy traffic and prolonged high temperatures.
Also Polymer Modified Bitumen 40 superior resistance to heavy loads, temperature fluctuations, and fatigue cracking.
Advantages of PMB 40
High Elasticity & Flexibility
Superior Rutting Resistance
Enhanced Fatigue Life
Better Adhesion
Excellent Low-Temperature Cracking Resistance
Polymer Modified Bitumen 40 is a high-performance polymer-modified bitumen engineered with a penetration grade of 40, designed to deliver exceptional resistance to rutting, cracking, and deformation under demanding traffic and climate conditions. The incorporation of advanced polymers significantly enhances the binder’s elasticity, durability, and flexibility, ensuring superior long-term performance compared to conventional bitumen.
Key Features of Polymer Modified 40
*Polymer Modification PMB 40 is formulated using high-performance polymers such as styrene-butadiene-styrene (SBS), ethylene-vinyl-acetate (EVA), or comparable modifiers. These additives significantly enhance the bitumen’s structural properties, improving its resistance to permanent deformation, thermal cracking, and oxidative aging. *High Elastic Recovery Thanks to its advanced polymer composition, PMB 40 demonstrates superior elastic recovery, enabling the binder to regain its original shape after deformation caused by heavy and repetitive traffic loading. This elasticity contributes to extended pavement life and improved performance under stress. *Enhanced Performance Resistance PMB 40 offers remarkable resistance across a wide range of operational conditions, including:
Rutting resistance at elevated temperatures
Crack resistance at low temperatures
Excellent fatigue resistance under continuous and repeated traffic loads
These enhanced characteristics make PMB 40 an optimal choice for high-stress asphalt applications requiring long-term durability and stability.
Specification of Polymer Modified Bitumen 40 (PMB 40)
CHARACTERISTICS
UNIT
LIMITS
TEST METHODS
Penetration @25°C (77°F), 100gm, 5sec
0.1MM
30-50
ASTM D5
Softening Point, Ring & Ball
°C
Min. 60
ASTM D36
Fraass Breaking Point
°C
Max. -16
EN 12593
Flash Point Cleveland open cup
°C
Min. 220
ASTM D92
Elastic Recovery at 15°C
%
Min. 30
ASTM D6084
Separation, Difference in Softening Point
°C
Max. 3
—
After Rolling Thin-Film Oven Test (RTFO)
ASTM D1754
Loss on Heating
%Wt
Max. 1.0
ASTM D6
Increase in Softening Point
°C
Max. 5
ASTM D36
Drop in Penetration
%
Max. 35
ASTM D5
Elastic Recovery at 25°C
%
Min. 35
ASTM D6084
Packing of Polymer Modified Bitumen
New Steel Drum
180kg New Steel Drum => Loading 110 Drum in 20ft Container= 19.80 Ton Net
150kg New Steel Drum => Loading 110Drum in 20ft Container= 16.50 Ton Net
Jumbo Bag
1MT Jumbo Bag with Steel Cage and Pallet or in (Wooden Box Pallet) => Loading 20*1000kg Jumbo Bag in 20ft Container = 20Ton Net
1MT Jumbo Bag without Steel Cage and Pallet => Loading 24*1200kg Jumbo Bag in 40ft Container = 24Ton Net
Bulk in Bitumen Tanker
Loading of 24-25Ton in Tanker Truck We Supply a variety of bitumen packing options in Dubai, UAE, including:
Jumbo Bag
Steel Drum
Bulk
Jumbo Bag
Jumbo bags are a popular method of transporting Bitumen Penetration From Dubai, UAE. These big, pliable bags may store 300–1,000 kg of bitumen and are usually constructed from woven polypropylene.
1MT Jumbo Bag with Pallet and Steel Cage: Loading 20Ton in 20ft Container = 20Ton Net
1MT Jumbo Bag without Pallet and Steel Cage: Loading 20Ton in 40ft Container = 20Ton Net
300Kg in Bitubag : Loading in 24Ton in 20ft Container

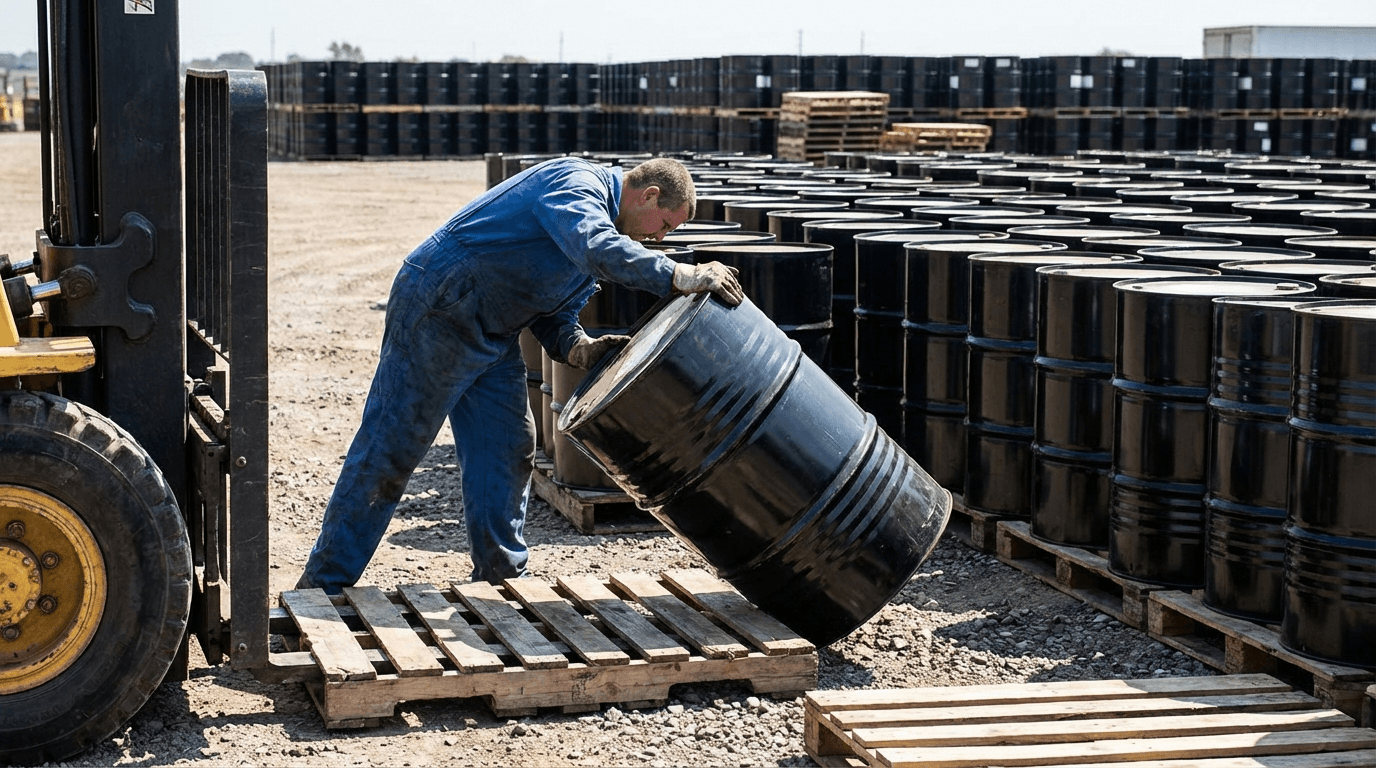

Steel Drum
Steel drums are a popular option for exporting Bitumen Penetration Penetration in UAE. This packaging method is preferred for its durability and dependability, which ensures safe transportation. These high-quality steel drums provide excellent protection against physical damage, contamination, and environmental hazards.
180kg New Steel Drum: Loading 110 Drum in 20ft Container= 19.80 Ton Net
150kg New Steel Drum: Loading 110Drum in 20ft Container= 16.50 Ton Net
Bulk
Bitumen Penetration in UAE, packed in 4 way packages Such as:
Bulk in Bitutainer
Bulk in Bulk Vessel
Bulk in Flexi Tank
Bulk in Truck Tanker
1. Bulk in Bitutainer
Bitumen penetration is frequently packed in bulk using bitutainers, which is an ideal way for efficient and safe transportation. A bitutainer can normally hold up to 25 tons of bitumen.
2. Bulk in Bulk Vessel
Bitumen is frequently loaded into bulk carrier boats for large-scale projects and worldwide transportation. This approach is very effective for loading volumes ranging from 1,000 to 30,000 tons.
3. Bulk in Flexi Tank
Large, flexible containers called flexitanks are made to fit within typical 20-foot shipping containers. When it comes to moving big loads of liquid or semi-liquid bitumen penetration, they are a great choice.
4. Bulk in Truck Tanker
Using tank trucks, also referred to as bitumen tankers, to transport bitumen penetration grades in bulk. These vehicles are built to handle heavy loads of bitumen, with capacities ranging from 24 to 25 tons.
Supplier of Polymer Modified Bitumen 40 (PMB 40)
At Hibernia Bitumen Co., as a PMB 40 in different types and grades. With over 15 years of experience, we have built strong partnerships with road construction companies across many countries. If you have any questions or inquiries, please don’t hesitate to contact us.
Our Payment Term
Our terms of payment are TT/30% in advance and balance after copy of BL. This secures 30% of the payment in advance while the remaining balance is settled when a copy of the Bill of Lading has been availed, ensuring goods are in transit and well documented.
How can I order ?
To place an order , customers can start by selecting the required grade and type of packaging. After confirming the specifications, an official quotation and proforma invoice will be issued. Upon agreement, the customer proceeds with the payment according to the provided terms. Once payment is received, the shipment process will begin, including coordination for delivery to the specified destination in Guinea-Bissau . Our team will assist at every step to ensure a smooth and timely supply. As a Bitumen Supplier in Across the World , our team will assist at every step to ensure a smooth and timely supply.
