PMB 120 or Polymer Modified Bitumen 120 a specially manufactured bitumen with polymers to deliver superior performance. this grade used in demand exceptional elasticity, durability, and resistance to deformation under the heaviest traffic conditions. we manufacture high-quality PMB 120 to withstand extreme temperature variations, long traffic loads, and harsh environmental conditions.
Polymer Modified Bitumen 120 is a specialized polymer-modified bituminous binder engineered for pavement applications in cold climates and environments that demand exceptional flexibility. Developed in accordance with IS 15462:2017, this grade combines conventional bitumen with advanced performance polymers to deliver superior resistance to low-temperature cracking, fatigue distress, and thermal-induced stresses.
With its high penetration value and outstanding ductility, PMB 120 ensures an elastic and durable pavement surface, particularly in regions where traditional bitumen fails to maintain adequate performance. Its tailored formulation makes it an ideal choice for infrastructure requiring long-term resilience against severe temperature fluctuations and mechanical loading.
Application of PMB 120
Poymer Modified Bitumen 120 is recommended for premium and specialized asphalt projects:
Bridge Decks & Expansion Joints
Intersections and roundabouts
Crack-Sealing & Joint-Sealing Applications
SMA Mixtures (Stone Mastic Asphalt)
Flexible Pavements in Cold Climates
Bitumen for railway ballast and port paving – suitable for heavy loads.
Airport runways – designed for heavy traffic loads
Advantages
Very high elastic recovery
Excellent low-temperature flexibility
High-viscosity, high-cohesion binder
Strong fatigue resistance
Low temperature susceptibility
Excellent waterproofing behavior
Key Features of Polymer Modified 120
*Polymer Modification
PMB 120 is formulated using high-performance polymers such as styrene-butadiene-styrene (SBS), ethylene-vinyl-acetate (EVA), or comparable modifiers. These additives significantly enhance the bitumen’s structural properties, improving its resistance to permanent deformation, thermal cracking, and oxidative aging.
*High Elastic Recovery
Thanks to its advanced polymer composition, PMB 120 demonstrates superior elastic recovery, enabling the binder to regain its original shape after deformation caused by heavy and repetitive traffic loading. This elasticity contributes to extended pavement life and improved performance under stress.
*Enhanced Performance Resistance
PMB 40 offers remarkable resistance across a wide range of operational conditions, including:
Rutting resistance at elevated temperatures
Crack resistance at low temperatures
Excellent fatigue resistance under continuous and repeated traffic loads
These enhanced characteristics make PMB 120 an optimal choice for high-stress asphalt applications requiring long-term durability and stability.
Specification of Polymer Modified Bitumen PMB 120
Designation
PMB 120
Test Method
Penetration at 25 ֯C, 1/10mm, 100g, 5 sec
90-150
ASTM D5
Softening Point, (R&B), ֯C, Min
50
ASTM D36
Elastic Recovery at 15 ֯C ,%, Min
60
ASTM D6084
Flash point , COC, ֯C , Min
220
ASTM D92
Separation, Difference in Softening Point,(R&B), ֯C, Max
3
—-
Thin Film Oven Test & Test on Residue
Loss in Mass, %, Max
1.0
ASTM D1754
Reduction in Penetration of residue at 25 ֯C , 100g, 5s, %,Max
35
ASTM D5
Increase in Softening Point, ֯C, Max
7
ASTM D36
Elastic Recovery at 25 ֯C, %, Min
50
ASTM D6085
Packing of Polymer Modified Bitumen
New Steel Drum
180kg New Steel Drum =>
Loading 110 Drum in 20ft Container= 19.80 Ton Net
150kg New Steel Drum =>
Loading 110Drum in 20ft Container= 16.50 Ton Net
Jumbo Bag
1MT Jumbo Bag with Steel Cage and Pallet or in (Wooden Box Pallet) => Loading 20*1000kg Jumbo Bag in 20ft Container = 20Ton Net
1MT Jumbo Bag without Steel Cage and Pallet => Loading 24*1200kg Jumbo Bag in 40ft Container = 24Ton Net
Bulk in Bitumen Tanker
Loading of 24-25Ton in Tanker Truck
Jumbo Bag
Jumbo bags are a popular method of transporting Bitumen Penetration From Dubai, UAE. These big, pliable bags may store 300–1,000 kg of bitumen and are usually constructed from woven polypropylene.
1MT Jumbo Bag with Pallet and Steel Cage: Loading 20Ton in 20ft Container = 20Ton Net
1MT Jumbo Bag without Pallet and Steel Cage: Loading 20Ton in 40ft Container = 20Ton Net
300Kg in Bitubag : Loading in 24Ton in 20ft Container

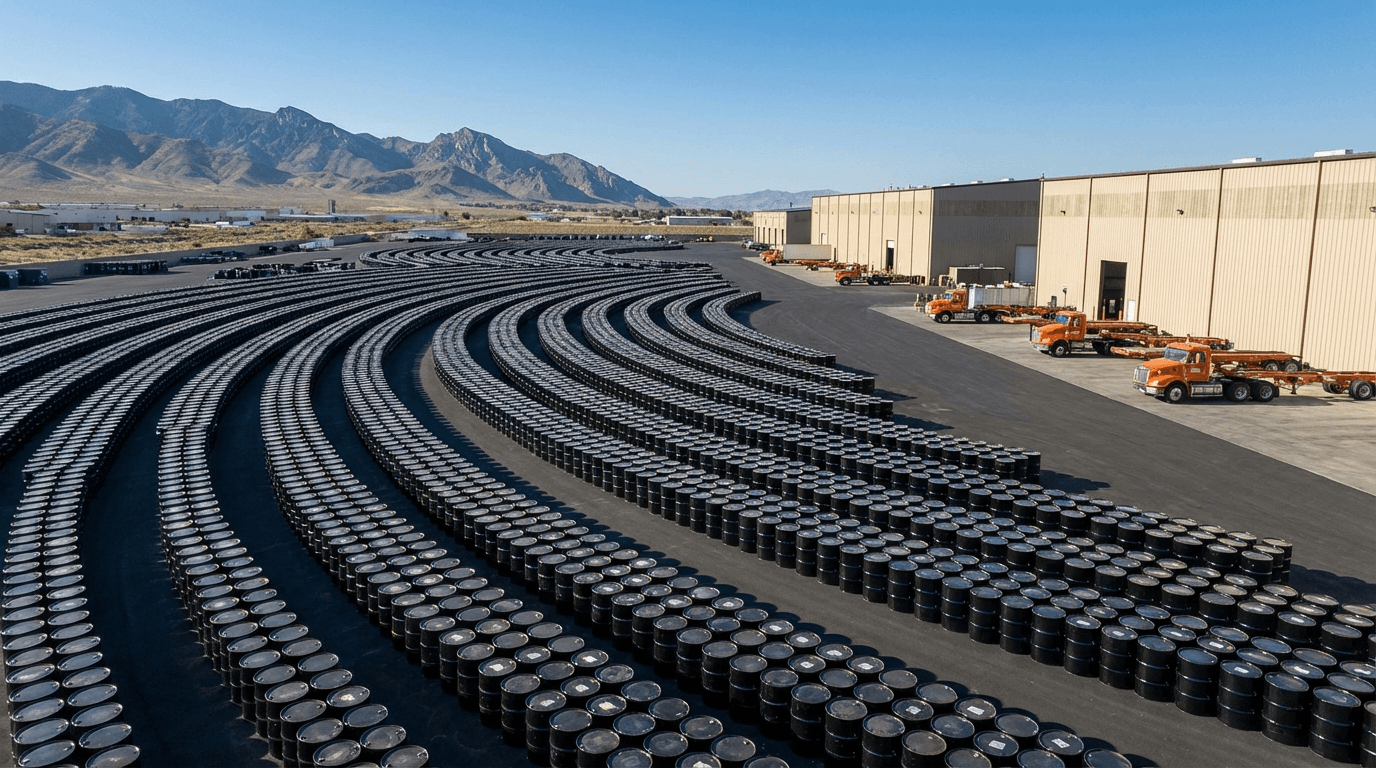

Steel Drum
Steel drums are a popular option for exporting Bitumen Penetration Penetration in UAE. This packaging method is preferred for its durability and dependability, which ensures safe transportation. These high-quality steel drums provide excellent protection against physical damage, contamination, and environmental hazards.
180kg New Steel Drum: Loading 110 Drum in 20ft Container= 19.80 Ton Net
150kg New Steel Drum: Loading 110Drum in 20ft Container= 16.50 Ton Net
Bulk
Bitumen Penetration in UAE, packed in 4 way packages Such as:
Bulk in Bitutainer
Bulk in Bulk Vessel
Bulk in Flexi Tank
Bulk in Truck Tanker

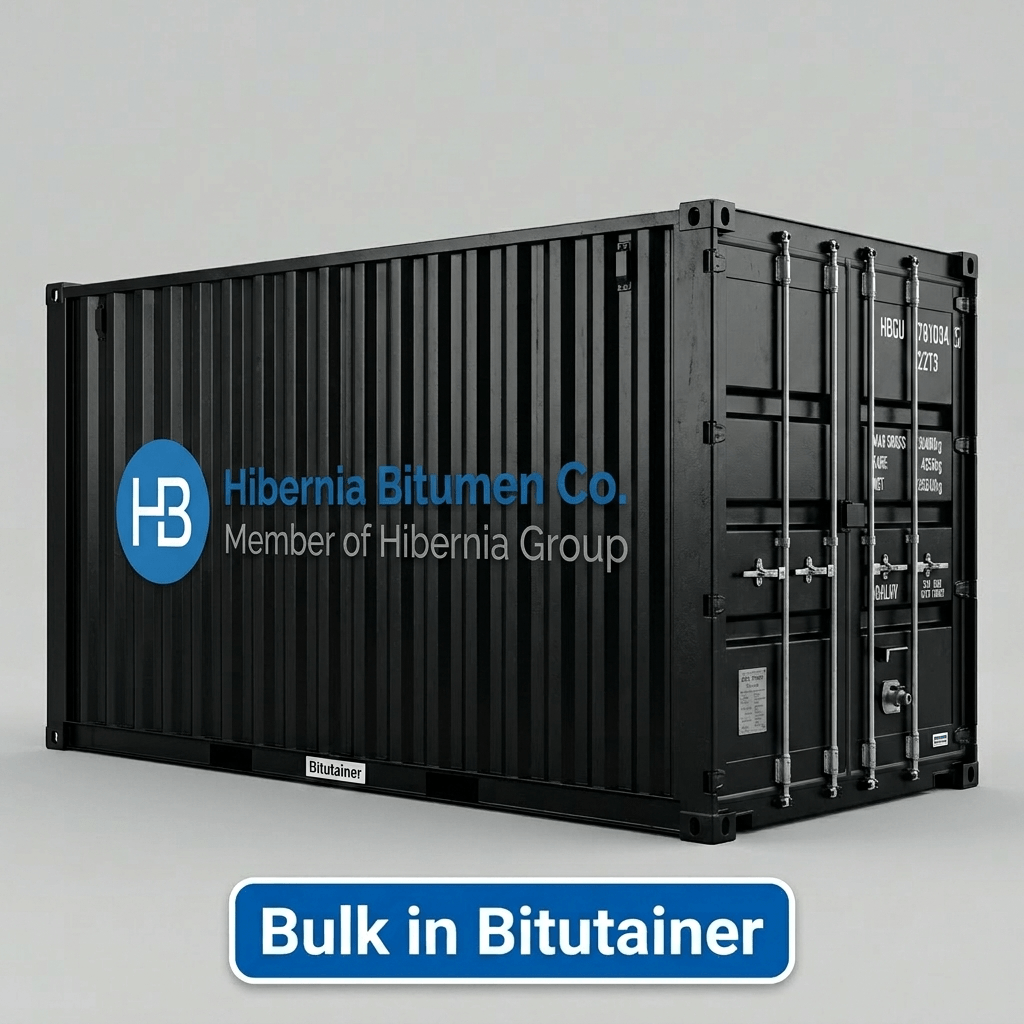

1. Bulk in Bitutainer
Bitumen penetration is frequently packed in bulk using bitutainers, which is an ideal way for efficient and safe transportation. A bitutainer can normally hold up to 25 tons of bitumen.
2. Bulk in Bulk Vessel
Bitumen is frequently loaded into bulk carrier boats for large-scale projects and worldwide transportation. This approach is very effective for loading volumes ranging from 1,000 to 30,000 tons.
3. Bulk in Flexi Tank
Large, flexible containers called flexitanks are made to fit within typical 20-foot shipping containers. When it comes to moving big loads of liquid or semi-liquid bitumen penetration, they are a great choice.
4. Bulk in Truck Tanker
Using tank trucks, also referred to as bitumen tankers, to transport bitumen penetration grades in bulk. These vehicles are built to handle heavy loads of bitumen, with capacities ranging from 24 to 25 tons.
Supplier of Polymer Modified Bitumen 120 (PMB 120)
At Hibernia Bitumen Co., as a PMB 120 in different types and grades. With over 15 years of experience, we have built strong partnerships with road construction companies across many countries. If you have any questions or inquiries, please don’t hesitate to contact us.
Leading supplier & exporter of Grade PMB 120 from Dubai UAE
High melting point bitumen with low penetration for tough conditions.
Competitive pricing with premium quality guarantee.
Bulk and bagged bitumen export solutions for easy shipping
Secure and reliable international distribution.
Our Payment Term
Our terms of payment are TT/30% in advance and balance after copy of BL. This secures 30% of the payment in advance while the remaining balance is settled when a copy of the Bill of Lading has been availed, ensuring goods are in transit and well documented.
How can I order ?
To place an order , customers can start by selecting the required grade and type of packaging. After confirming the specifications, an official quotation and proforma invoice will be issued. Upon agreement, the customer proceeds with the payment according to the provided terms. Once payment is received, the shipment process will begin, including coordination for delivery to the specified destination in Guinea-Bissau . Our team will assist at every step to ensure a smooth and timely supply. As a Bitumen Supplier in Across the World , our team will assist at every step to ensure a smooth and timely supply.
