Performance grade shall be customized specification widely used in road construction, with different grades suitable for various climate conditions and traffic loads..
PMB Bitumen PG 76-22 is a high-performance polymer-modified bitumen designed for regions with very high temperatures (up to +76°C) and cold temperatures down to -22°C. It offers excellent resistance to rutting, fatigue cracking, thermal cracking, and aging, making it suitable for highways, airports, bridges, and heavy traffic pavements exposed to extreme weather conditions.
PG 76-22 is typically produced using SBS (Styrene Butadiene Styrene) polymer, improving elasticity, cohesion, adhesion to aggregates, and durability.
Standard
General standards applied to PG 76-22 include, among others:
ASTM D36-22: Standard Specification for Bituminous Materials, for Use in Road Construction.
AASHTO M 224-23: Standard Specification for Emulsified Asphalt.
EN 12593: Bitumen for road construction – Specifications.
ISO 9001: Quality management systems – Requirements for any organization.
Specification of SBS PMB Bitumen PG 76-22
CHARACTERISTICS
UNIT
LIMITS
TEST METHODS
Average 7-day maximum pavement design temperature
°C
<76
—-
Minimum pavement design temperaturea
°C
>22
—-
Flash Point
°C
Min. 230
AASHTO T48
Viscosityb@135°C
Pa.s
Max. 3.0
AASHTO T316
Dynamic Shearc, G*/sin δd at 76°C at 10rad/s
kPa
Min. 1.0
AASHTO T315
Elastic Recovery
%
Min. 50
AASHTO T301
Mass change
%Wt
Max. 1.0
AASHTO T240
Dynamic Shear,G*/sin δd at 76°C at 10rad/s
kPa
Min. 2.2
AASHTO T315
PAV Temperature
°C
110
AASHTO R28
Dynamic Shear, G*.sin δd at 34°C at 10rad/s
kPa
Max. 5000
AASHTO T315
Creep Stiffnessf at -6°C
—-
—-
AASHTO T313
– S value
Mpa
Max. 300
—-
M value (slope)
—-
Min. 0.30
—-
Direct Tensionf at, -6°C
—-
—-
AASHTO T314
Failure strain, test temp @ 1.0 mm/min
%
Min. 1.0
—-
Quality Control
All products undergo rigorous evaluation in our dedicated laboratory, where testing is performed in accordance with international standards. Upon request, third-party witness testing can be conducted prior to shipment. To guarantee consistency and compliance, we also appoint reputable global inspection agencies to verify the quality of bitumen before every dispatch.
Geo Chem & SGS Inspection
We are able to provide a certificate of SGS & GEO Chem inspection for all Bitumen PG projects upon request.
Health & Safety
Bitumen poses minimal health or safety risks when handled correctly and used for its intended industrial purpose. Safe working practices, along with proper personal protective equipment and adherence to hygiene standards, help ensure a secure environment for all personnel involved in storage, transport, and application.
Application of Performance Grade PMB Bitumen PG 76-22
Bitumen PG 76-22 is used in high-stress and high-temperature areas, such as:
Highways and Expressways: Widely used for high-traffic highways and expressways that face heavy and continuous traffic loads. The high-temperature performance helps resist rutting and deformation in such conditions.
Industrial Zones and Heavy-Duty Roads: Suitable for industrial areas and roads where heavy-duty vehicles frequently operate, as Bitumen PG 82-10 can handle the stress from heavy, slow-moving vehicles.
Airport Runways and Taxiways: Ideal for airport pavements where exposure to high temperatures and heavy aircraft loads require resistance to deformation and cracking.
Bridges and Elevated Structures: Used on bridges and overpasses to handle thermal stresses and prevent cracking, which are common due to temperature fluctuations and high traffic loads.
Urban Roads and High-Temperature Regions: Effective in urban environments and regions with extremely hot summers, where roads face both heavy traffic and prolonged high temperatures.
Advantage of Performance Grad PMB Bitumen PG 76-22
Advanced Crack Resistance: Prevents low-temperature cracking in severe winter climates.
High Rutting Resistance: Performs under extreme heat and traffic pressure.
Exceptional Durability: Supports long-term pavement integrity under freeze-thaw stress.
Quality Consistency: Engineered for reliable results across multiple climate conditions.
Key Features of PMB PG Bitumen 76-22
1. Superior High-Temperature Stability:
PMB 76-22 is engineered to withstand extreme heat, performing reliably at temperatures reaching 76°C. This high-temperature stability minimizes rutting and deformation, making it an ideal choice for heavy-traffic zones and hot-weather regions.
2. Reliable Low-Temperature Flexibility:
Even in severe cold—down to -22°C—this binder maintains its flexibility and resists cracking. Its performance in low temperatures ensures long-lasting durability in climates with harsh winters.
3. Enhanced Performance Through Polymer Modification:
Formulated with polymers such as SBS (styrene-butadiene-styrene) or similar elastomers, PMB 76-22 offers improved elasticity, cohesion, and structural strength. These enhancements significantly boost its resistance to thermal variations and heavy traffic loading.
Packing of Polymner Modified PG Bitumen 76-22
Polymer Modified Bitumen PG 82-22 is available in various packaging types to meet the needs of different projects and logistical requirements. the diferent packing of PG Bitumen including:
We Supply a variety of bitumen packing options in Dubai, UAE, including:
Jumbo Bag
Steel Drum
Bulk
Jumbo Bag
Jumbo bags are a popular method of transporting Bitumen Penetration From Dubai, UAE. These big, pliable bags may store 300–1,000 kg of bitumen and are usually constructed from woven polypropylene.
1MT Jumbo Bag with Pallet and Steel Cage: Loading 20Ton in 20ft Container = 20Ton Net
1MT Jumbo Bag without Pallet and Steel Cage: Loading 20Ton in 40ft Container = 20Ton Net
300Kg in Bitubag : Loading in 24Ton in 20ft Container

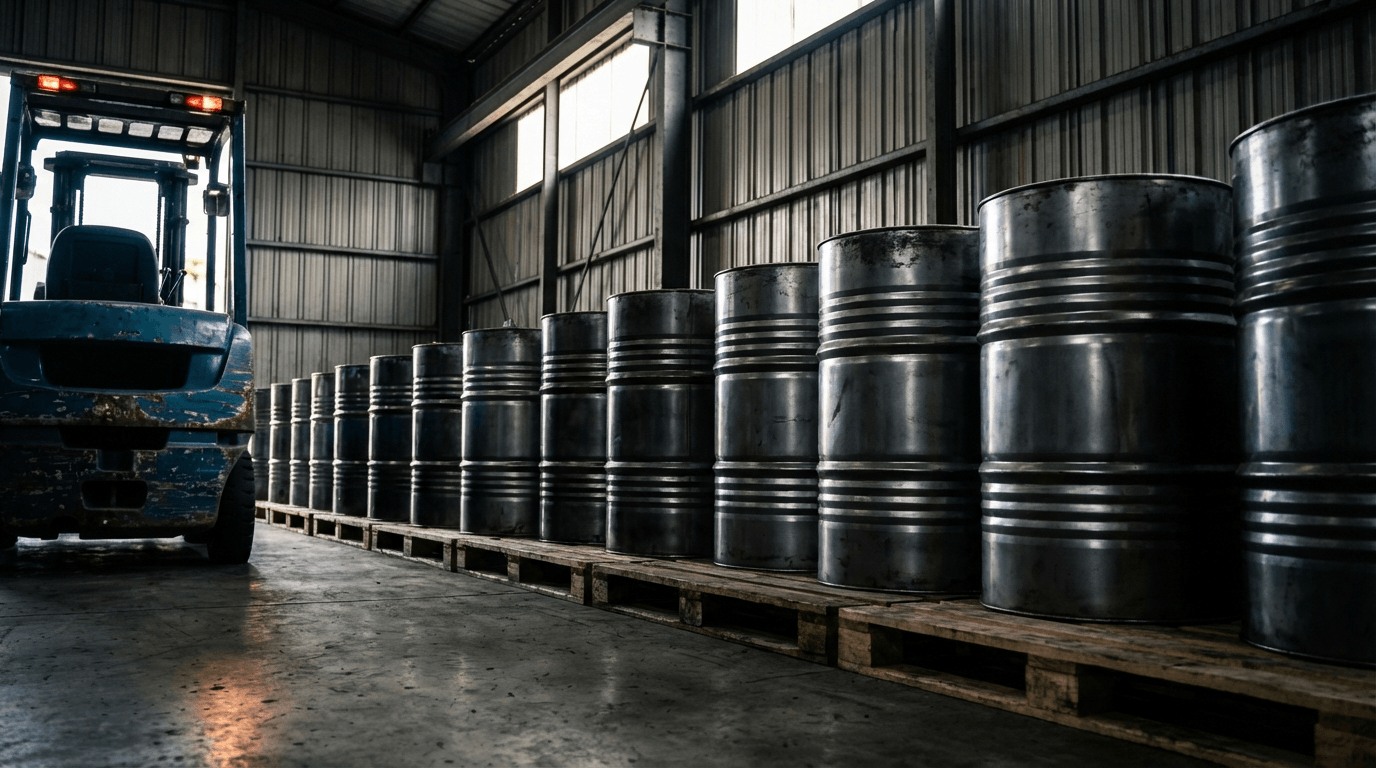

Steel Drum
Steel drums are a popular option for exporting Bitumen Penetration Penetration in UAE. This packaging method is preferred for its durability and dependability, which ensures safe transportation. These high-quality steel drums provide excellent protection against physical damage, contamination, and environmental hazards.
180kg New Steel Drum: Loading 110 Drum in 20ft Container= 19.80 Ton Net
150kg New Steel Drum: Loading 110Drum in 20ft Container= 16.50 Ton Net
Bulk
Bitumen Penetration in UAE, packed in 4 way packages Such as:
Bulk in Bitutainer
Bulk in Bulk Vessel
Bulk in Flexi Tank
Bulk in Truck Tanker
1. Bulk in Bitutainer
Bitumen penetration is frequently packed in bulk using bitutainers, which is an ideal way for efficient and safe transportation. A bitutainer can normally hold up to 25 tons of bitumen.
2. Bulk in Bulk Vessel
Bitumen is frequently loaded into bulk carrier boats for large-scale projects and worldwide transportation. This approach is very effective for loading volumes ranging from 1,000 to 30,000 tons.
3. Bulk in Flexi Tank
Large, flexible containers called flexitanks are made to fit within typical 20-foot shipping containers. When it comes to moving big loads of liquid or semi-liquid bitumen penetration, they are a great choice.
4. Bulk in Truck Tanker
Using tank trucks, also referred to as bitumen tankers, to transport bitumen penetration grades in bulk. These vehicles are built to handle heavy loads of bitumen, with capacities ranging from 24 to 25 tons.
Supplier of Polymer Modified PG 76-22
At HIBERNIA Bitumen Co., as a Performance Grade Bitumen PG 76-22 in different types and grades. With over 15 years of experience, we have built strong partnerships with road construction companies across many countries. If you have any questions or inquiries, please don’t hesitate to contact us.
Our Payment Term
Our terms of payment are TT/30% in advance and balance after copy of BL. This secures 30% of the payment in advance while the remaining balance is settled when a copy of the Bill of Lading has been availed, ensuring goods are in transit and well documented.
How can I order PMB PG 76-22 ?
To place an order for Bitumen PG 76-22 , customers can start by selecting the required grade and type of packaging. After confirming the specifications, an official quotation and proforma invoice will be issued. Upon agreement, the customer proceeds with the payment according to the provided terms. Once payment is received, the shipment process will begin, including coordination for delivery to the specified destination in Guinea-Bissau . Our team will assist at every step to ensure a smooth and timely supply. As a Bitumen Supplier in Across the World , our team will assist at every step to ensure a smooth and timely supply.
