PMB Bitumen PG 82-22, also known as Polymer Modified Bitumen PG 82-22, is a high-performance asphalt binder engineered to deliver superior performance under extreme climatic conditions and heavy traffic loads. This performance-grade (PG) bitumen is modified with polymers—typically SBS (Styrene-Butadiene-Styrene)—to enhance elasticity, durability, adhesion, and resistance to both rutting and cracking.

The grade designation 82-22 indicates that this binder is designed to withstand maximum pavement temperatures up to +82°C while maintaining flexibility and crack resistance at minimum pavement temperatures down to −22°C, making it ideal for infrastructure exposed to severe thermal variations.

Definition and Material Characteristics

PMB Bitumen PG 82-22 is produced by blending base petroleum bitumen with carefully selected polymer modifiers under controlled temperature and shear conditions. The polymer modification significantly alters the rheological behavior of the binder, improving its elastic recovery, cohesion, and resistance to permanent deformation.

Unlike conventional penetration grade bitumen, PG 82-22 maintains:

• High stiffness at elevated temperatures to resist rutting

• Sufficient flexibility at low temperatures to prevent thermal cracking

• Strong adhesion to aggregates under heavy traffic stress

This makes PMB PG 82-22 suitable for high-performance pavement systems where conventional bitumen grades fail.

Meaning of Performance Grade PG 82-22

The Performance Grade (PG) system classifies bitumen based on its actual performance in service rather than simple consistency tests.

PG 82-22 means:

• 82°C: Maximum average 7-day pavement design temperature

• −22°C: Minimum pavement design temperature

This wide temperature range reflects the binder’s ability to perform reliably in regions experiencing hot summers, cold winters, and frequent freeze-thaw cycles.

Physical and Performance Properties

PMB Bitumen PG 82-22 is characterized by:

• Exceptional high-temperature stability

• High resistance to rutting and permanent deformation

• Excellent low-temperature flexibility and crack resistance

• Superior elastic recovery due to polymer modification

• Strong adhesion and moisture damage resistance

• Enhanced durability under repeated traffic loading

These properties make PG 82-22 one of the most advanced binders for demanding pavement applications.

Applications of PMB Bitumen PG 82-22

Performance Grade Bitumen PG 82-22 is widely used in:

• Highways and expressways subjected to heavy and continuous traffic

• Industrial zones and heavy-duty roads with slow-moving, high-load vehicles

• Airport runways and taxiways, where resistance to deformation under aircraft loads is critical

• Bridges and elevated structures, to manage thermal stresses and prevent cracking

• Urban roads and high-temperature regions, where prolonged heat and traffic loads coexist

This grade is particularly effective in high-performance infrastructure projects requiring long service life and minimal maintenance.

Standards and Compliance

PMB Bitumen PG 82-22 is manufactured and tested in accordance with internationally recognized standards, including:

• ASTM D36 – Softening point of bituminous materials

• AASHTO M 320 / M 332 – Performance-graded asphalt binder specifications

• AASHTO T315, T316, T301, T313, T314 – Rheological and performance testing

• EN standards for bitumen used in road construction

• ISO 9001 – Quality management systems

These standards ensure consistent quality, performance reliability, and international acceptance.

Technical Specification – SBS Modified Bitumen PG 82-22

Quality Control and Assurance

All PMB Bitumen PG 82-22 products undergo rigorous testing in certified in-house laboratories compliant with AASHTO requirements. Quality assurance measures include:

• Batch-wise laboratory testing

• Witness testing prior to shipment (upon request)

• Third-party inspection by internationally recognized agencies

• Full compliance with project-specific Inspection and Test Plans (ITP) and QC procedures

SGS and GeoChem inspection certificates can be provided upon request.

Advantages of PMB Bitumen PG 82-22

• Advanced resistance to low-temperature cracking

• Outstanding rutting resistance under extreme heat

• Exceptional durability under freeze-thaw conditions

• Consistent performance across wide climatic ranges

• Reduced maintenance and extended pavement life

Packaging and Supply Options

Polymer Modified Bitumen PG 82-22 is available in multiple packaging formats:

• Steel drums (150 kg / 180 kg)

• 1 MT Jumbo Bags (with or without pallet and steel cage)

• Bulk tanker trucks (24–25 tons)

• Bulk vessels (1,000–30,000 tons)

• Bitutainers (25 tons)

Jumbo Bag

Jumbo bags are a popular method of transporting Bitumen Penetration From Dubai, UAE. These big, pliable bags may store 300–1,000 kg of bitumen and are usually constructed from woven polypropylene.

• 1MT Jumbo Bag with Pallet and Steel Cage: Loading 20Ton in 20ft Container = 20Ton Net
• 1MT Jumbo Bag without Pallet and Steel Cage: Loading 20Ton in 40ft Container = 20Ton Net
• 300Kg in Bitubag : Loading in 24Ton in 20ft Container

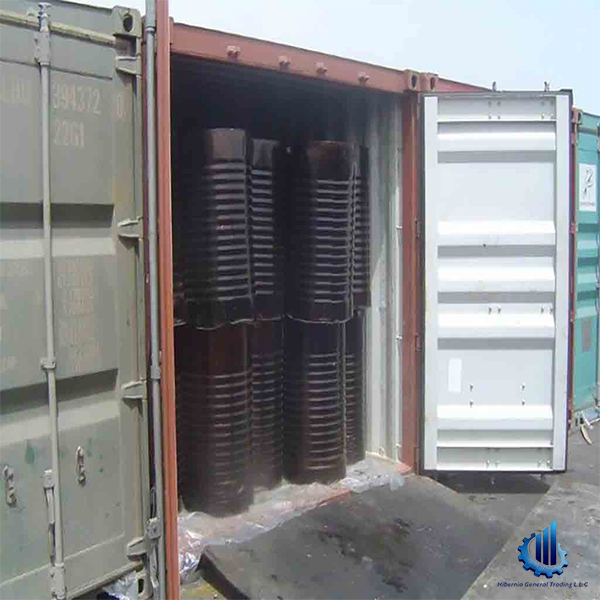

Steel Drum

Steel drums are a popular option for exporting Bitumen Penetration Penetration in UAE. This packaging method is preferred for its durability and dependability, which ensures safe transportation. These high-quality steel drums provide excellent protection against physical damage, contamination, and environmental hazards.

• 180kg New Steel Drum: Loading 110 Drum in 20ft Container= 19.80 Ton Net
• 150kg New Steel Drum: Loading 110Drum in 20ft Container= 16.50 Ton Net

Bulk

Bitumen Penetration in UAE, packed in 4 way packages Such as:

1. Bulk in Bitutainer
2. Bulk in Bulk Vessel
3. Bulk in Flexi Tank
4. Bulk in Truck Tanker

1. Bulk in Bitutainer

Bitumen penetration is frequently packed in bulk using bitutainers, which is an ideal way for efficient and safe transportation. A bitutainer can normally hold up to 25 tons of bitumen.

2. Bulk in Bulk Vessel

Bitumen is frequently loaded into bulk carrier boats for large-scale projects and worldwide transportation. This approach is very effective for loading volumes ranging from 1,000 to 30,000 tons.

3. Bulk in Flexi Tank

Large, flexible containers called flexitanks are made to fit within typical 20-foot shipping containers. When it comes to moving big loads of liquid or semi-liquid bitumen penetration, they are a great choice.

4. Bulk in Truck Tanker

Using tank trucks, also referred to as bitumen tankers, to transport bitumen penetration grades in bulk. These vehicles are built to handle heavy loads of bitumen, with capacities ranging from 24 to 25 tons.

These options allow flexibility for both small-scale and large-scale infrastructure projects.

Health and Safety

PMB Bitumen PG 82-22 poses minimal health and safety risks when handled according to recommended industrial practices. Proper personal protective equipment (PPE), ventilation, and adherence to safety guidelines ensure safe storage, transport, and application.

Conclusion

PMB Bitumen PG 82-22 is a premium polymer-modified asphalt binder engineered for extreme temperature conditions and heavy traffic environments. Its superior elastic behavior, resistance to rutting and cracking, and long-term durability make it an ideal choice for highways, airports, industrial pavements, and high-performance road infrastructure projects worldwide.
